Home /Products/Vacuum Furnace/High Temperature Vacuum Sintering Furnace with Rapid Cooling and 1800℃ to 2500℃ Operating Range

High Temperature Vacuum Sintering Furnace with Rapid Cooling and 1800℃ to 2500℃ Operating Range

1
MOQ
Negotiation
Price
High Temperature Vacuum Sintering Furnace with Rapid Cooling and 1800℃ to 2500℃ Operating Range
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vacuum Sintering Furnace
Use: Sintering Furnace
Warranty Of Core Components: 1 Year
Final Vacuum Of Cold State: 6X0.01Pa (empty Furnace)
Temperature Accuracy: ± 1 ℃
Leak Rate: 3Pa/h
Highlight:

High Temperature Vacuum Sintering Furnace

,

Rapid Cooling Vacuum Furnace

,

1800℃ to 2500℃ Vacuum Sintering Furnace
Basic Infomation
Place of Origin: Shaanxi, China
Brand Name: AE
Certification: CE;ISO9001;ISO14001;OHSAS 18001
Payment & Shipping Terms
Delivery Time: 30-90work days
Product Description
Rapid Cooling Vacuum Sintering Furnace High Temperature Vacuum Furnace
Vacuum Sintering Furnace
The vacuum sintering furnace is a cycle-operated electric furnace designed for high-temperature processing under vacuum or protective atmosphere conditions. It is widely used for sintering hard alloys, high-temperature alloys, optoelectronic materials, functional ceramics, transparent ceramics, and powder metallurgy applications. Ideal for research institutions, military applications, and industrial facilities working with refractory alloys like tungsten, molybdenum, and their alloys.
Key Features
  • Single chamber design with horizontal structure, available in front door or double door configurations for easy operation
  • Compact equipment layout with minimal footprint requirements
  • Natural cooling for high-temperature sections with optional positive pressure inert gas cooling for accelerated cooling in low-temperature sections
  • Maximum operating temperatures: 1800°C or 2500°C
  • Compatible with hydrogen, nitrogen, inert gases, or high vacuum environments (induction heating tungsten crucible)
  • Precision temperature measurement using far-infrared optical technology (800-2400°C or 0-2400°C range) with 0.2-0.75% accuracy
Technical Specifications
Working area size (Diameter * Height mm) Φ200*300 Φ300*600 Φ400*900
Ultimate vacuum (Pa) 1*10-4 | 1*10-3 1*10-4 | 1*10-3 1*10-4 | 1*10-3
Maximum temperature (°C) 2400 | 2500 2400 | 2500 2400 | 2500
Temperature uniformity (°C) ±7.5 ±7.5 ±7.5 | ±10
Pressure rise rate (Pa/h) 0.67 0.67 0.67

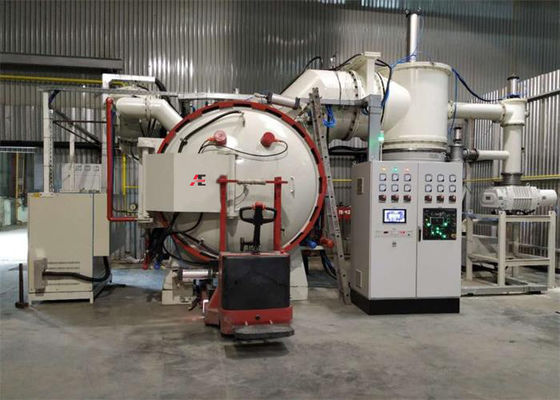

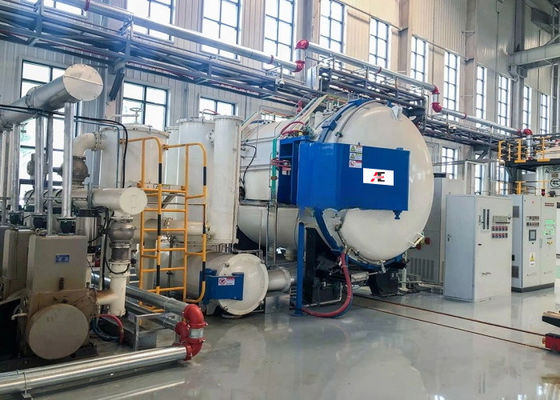

Production Workshop
High Temperature Vacuum Sintering Furnace with Rapid Cooling and 1800℃ to 2500℃ Operating Range 0
High Temperature Vacuum Sintering Furnace with Rapid Cooling and 1800℃ to 2500℃ Operating Range 1
