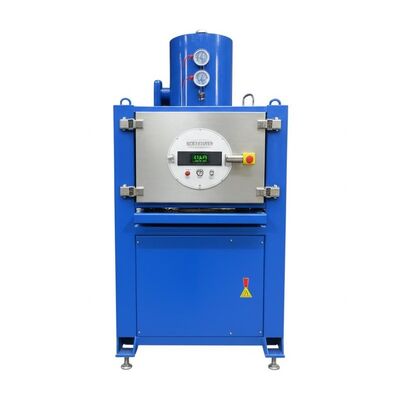

Vacuum Sintering Furnace with Temperature Accuracy ±1℃ Leak Rate 3Pa/h and Ultimate Vacuum 6X0.01Pa for Industrial Sintering

1
MOQ
Negotiation
Price
Vacuum Sintering Furnace with Temperature Accuracy ±1℃ Leak Rate 3Pa/h and Ultimate Vacuum 6X0.01Pa for Industrial Sintering
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vacuum Sintering Furnace
Use: Sintering Furnace
Warranty Of Core Components: 1 Year
Final Vacuum Of Cold State: 6X0.01Pa (empty Furnace)
Temperature Accuracy: ± 1 ℃
Leak Rate: 3Pa/h
Highlight:

Temperature Accuracy ±1℃ Vacuum Sintering Furnace

,

Leak Rate 3Pa/h Industrial Sintering Furnace

,

Ultimate Vacuum 6X0.01Pa Powder Metallurgy Sintering Furnace
Basic Infomation
Place of Origin: Shaanxi, China
Brand Name: AE
Certification: CE;ISO9001;ISO14001;OHSAS 18001
Payment & Shipping Terms
Delivery Time: 30-90work days
Product Description
Vacuum Sintering Furnace for Heat Treatment & Powder Metallurgy
The vacuum sintering furnace is a cycle-operated electric furnace designed for high-temperature processing under vacuum or protective atmosphere conditions. It is ideal for sintering hard alloys, high-temperature alloys, optoelectronic materials, functional ceramics, transparent ceramics, and powder metallurgy applications.
Key Features
  • Single chamber with horizontal structure featuring front door or double door configuration for easy operation
  • Compact equipment layout with minimal footprint requirements
  • Natural cooling for high-temperature sections with optional inert gas cooling for accelerated low-temperature cooling
  • Maximum operating temperatures up to 2500℃
  • Compatible with hydrogen, nitrogen, inert gas or high vacuum working atmospheres
  • Precise far-infrared optical temperature measurement (800~2400℃) with accuracy of 0.2~0.75%
Technical Specifications
Working Area Size (D*H mm) Φ200*300 Φ300*600 Φ400*900
Ultimate Vacuum (Pa) 1*10-4 / 1*10-3 1*10-4 / 1*10-3 1*10-4 / 1*10-3
Maximum Temperature (℃) 2400 / 2500 2400 / 2500 2400 / 2500
Temperature Uniformity (℃) ±7.5 ±7.5 ±10
Pressure Rise Rate (Pa/h) 0.67 0.67 0.67

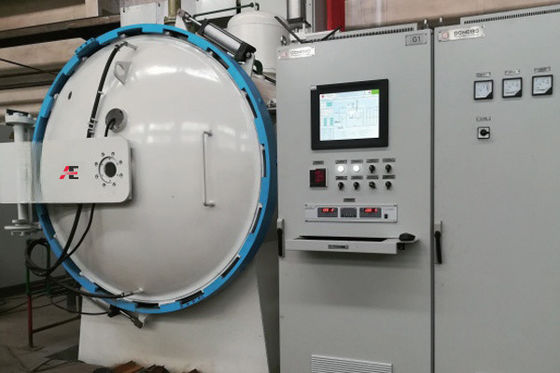

Production Workshop
Vacuum Sintering Furnace with Temperature Accuracy ±1℃ Leak Rate 3Pa/h and Ultimate Vacuum 6X0.01Pa for Industrial Sintering 0 Vacuum Sintering Furnace with Temperature Accuracy ±1℃ Leak Rate 3Pa/h and Ultimate Vacuum 6X0.01Pa for Industrial Sintering 1
