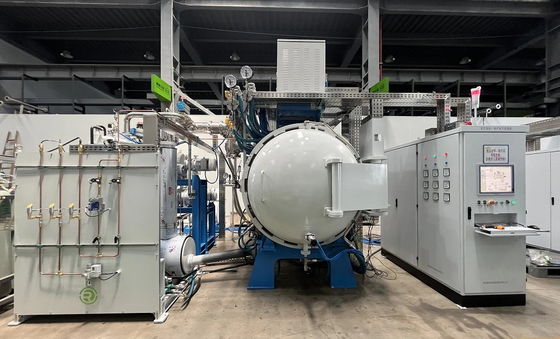

High Vacuum Sintering Furnace with 10-3Pa Vacuum and 1800℃ to 2500℃ Temperature Range for Heat Treatment

1
MOQ
Negotiation
Price
High Vacuum Sintering Furnace with 10-3Pa Vacuum and 1800℃ to 2500℃ Temperature Range for Heat Treatment
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vacuum Sintering Furnace
Warranty Of Core Components: 1 Year
Voltage: 380, 380V
Key Selling Points: Competitive Price
Leak Rate: 3Pa/h
Highlight:

10-3Pa Vacuum Sintering Furnace

,

1800℃ Vacuum Heat Treatment Furnace

,

2500℃ High Vacuum Furnace
Basic Infomation
Place of Origin: Shaanxi, China
Brand Name: AE
Certification: CE;ISO9001;ISO14001;OHSAS 18001
Payment & Shipping Terms
Delivery Time: 30-90work days
Product Description
High Vacuum Furnace 10-3Pa Medium Temperature Vacuum Heat Treatment Furnace
Vacuum sintering furnace - Professional medium temperature vacuum sintering furnace offering best quality performance with high vacuum capabilities up to 10-3Pa.
Product Description
The vacuum sintering furnace is a cycle-operated electric furnace designed for high-temperature processing under high vacuum and protective atmosphere conditions. Ideal for sintering hard alloys, high-temperature alloys, optoelectronic materials, functional ceramics, transparent ceramics, and powder metallurgy applications. Suitable for research institutions, military applications, and industrial processing of refractory alloys including tungsten, molybdenum, and their alloys.
Key Features
  • Single chamber with horizontal structure featuring front door or dual door configuration for simple operation
  • Compact equipment layout with minimal footprint requirements
  • Natural cooling for high-temperature sections with optional positive pressure inert gas cooling for accelerated low-temperature cooling
  • Maximum operating temperatures: 1800°C or 2500°C
  • Compatible with hydrogen, nitrogen, inert gas, or high vacuum working atmospheres (induction heating tungsten crucible)
  • Precision temperature measurement using far-infrared optical technology (800-2400°C or 0-2400°C range) with 0.2-0.75% accuracy
Technical Specifications
Working Area Size (D*H mm) Φ200*300 Φ300*600 Φ400*900
Ultimate Vacuum (Pa) 1*10-4
1*10-3		 1*10-4
1*10-3		 1*10-4
1*10-3
Maximum Temperature (°C) 2400
2500		 2400
2500		 2400
2500
Temperature Uniformity (°C) ±7.5 ±7.5 ±10
Pressure Rise Rate (Pa/h) 0.67 0.67 0.67
