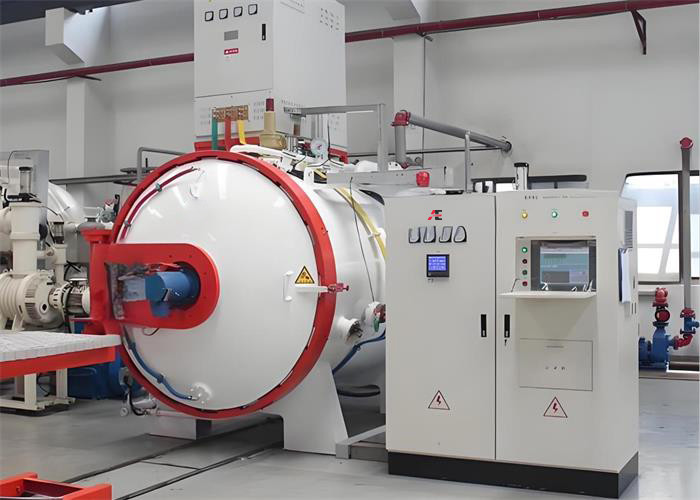

Vacuum high pressure gas quenching furnace
Vacuum Hardening Furnace Manufacturer Vacuum Oil Quenching Furnace Gas Quench Furnace Heat Treatment Manufacturer
Application:
Mainly used for vacuum quenching, annealing, tempering, and solution treatment of metal materials such as high-speed tool steel, die steel, and martensitic stainless steel. It can also be used for sintering and vacuum brazing of powder metallurgy products and magnetic materials.
Advantages and features:
New heating chamber structure, more uniform heating, low power loss, and more energy-saving.
According to the different cooling speed requirements of parts, it is equipped with a high-efficiency copper fin heat exchanger with adjustable cooling speed, which can realize processes such as graded quenching and isothermal quenching.
The furnace door is equipped with a unique sealing structure to ensure positive and negative pressure bidirectional sealing.
Options:
Furnace body form: vertical, horizontal.
Pressure: 2bar, 6bar, 10bar, 16bar.
Heating element: graphite; high-temperature molybdenum-lanthanum alloy.
Heat insulation screen: insulation felt; metal screen.
Vacuum pump set: imported; domestic high-quality brand.
Technical Parameter:
|
Model |
Working Zone Size (W*H*L) |
MAX Temperature |
Cooling Gas Pressure |
Ultimate Pressure |
Temperature Uniformity |
Loading Capacity |
|
UNDQ-446 |
400*400*600mm |
1350℃ |
6/10/15/20Bar |
6.7*10-4Pa/6.7*10-1Pa |
±5℃ |
200Kg |
|
UNDQ-557 |
500*500*700mm |
1350℃ |
6/10/15/20Bar |
6.7*10-4Pa/6.7*10-1Pa |
±5℃ |
300Kg |
|
UNDQ-669 |
600*600*900mm |
1350℃ |
6/10/15/20Bar |
6.7*10-4Pa/6.7*10-1Pa |
±5℃ |
500Kg |
|
UNDQ-7710 |
700*700*1000mm |
1350℃ |
6/10/15/20Bar |
6.7*10-4Pa/6.7*10-1Pa |
±5℃ |
700Kg |
|
UNDQ-8812 |
800*800*1200mm |
1350℃ |
6/10/15/20Bar |
6.7*10-4Pa/6.7*10-1Pa |
±5℃ |
1000Kg |
|
UNDQ-9915 |
900*900*1500mm |
1350℃ |
6/10/15/20Bar |
6.7*10-4Pa/6.7*10-1Pa |
±5℃ |
1200Kg |
|
Remark: The working zone of equipment could be customized base on customer’s production. |
||||||
