Vacuum sintering furnace

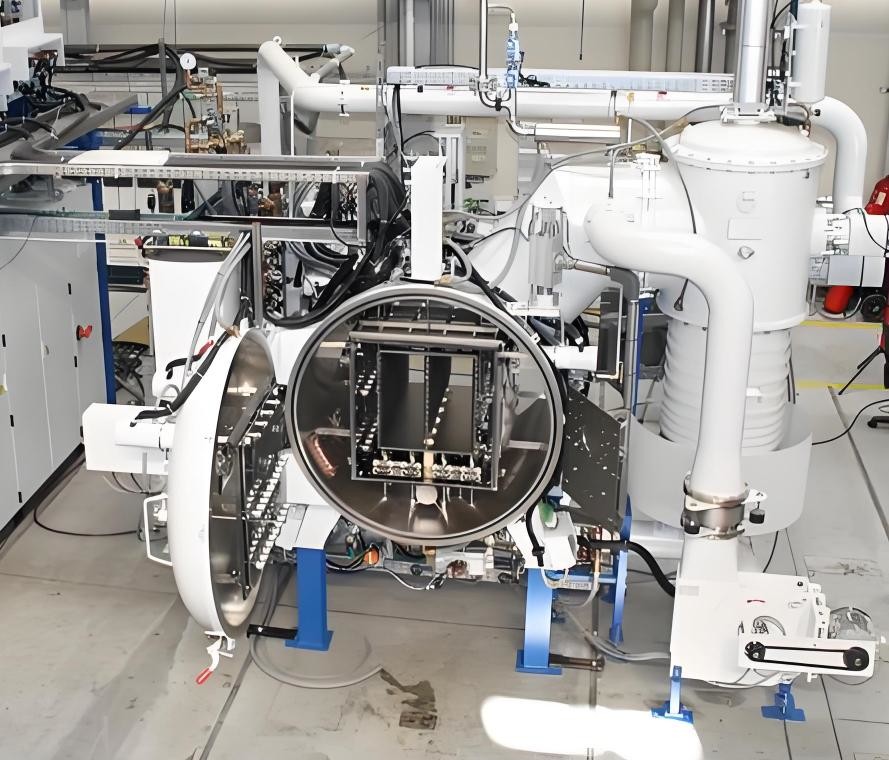

Vacuum Sintering Furnace Heat Vacuum Sintering Furnace With Graphite Heating Element AC380V
Products Description
The vacuum sintering furnace is a cycle-operated electric furnace, which is widely used for sintering hard alloys, high-temperature alloys, optoelectronic materials, functional ceramics, transparent ceramics, powder metallurgy, etc. under high temperature, high vacuum and protective atmosphere conditions. It is also suitable for scientific research, military units, and industrial units for powder molding and sintering of refractory alloys such as tungsten, molybdenum and their alloys.
Product Features
1. Single chamber, horizontal structure, front door or front and back double doors, simple and convenient operation. The equipment layout is compact and reasonable, and the footprint is small.
2. The high-temperature section of the furnace body is cooled by natural cooling, and the low-temperature section can be cooled by filling positive pressure inert gas to accelerate the cooling speed.
3. Maximum operating temperature: 1800℃, 2500℃, working atmosphere: hydrogen, nitrogen, inert gas or high vacuum state (induction heating tungsten crucible)
4. Temperature measurement: far-infrared optical temperature measurement, temperature measurement range 800~2400℃ or 0~2400℃; temperature measurement accuracy 0.2~0.75%.
|
Working area size Diameter x height(mm) |
Φ200×300 |
Φ300×600 |
Φ400×900 |
|||
|
Ultimate vacuum(Pa) |
1X10-4 |
1X10-3 |
1X10-4 |
1X10-3 |
1X10-4 |
1X10-3 |
|
Maximum temperature(℃) |
2400 |
2500 |
2400 |
2500 |
2400 |
2500 |
|
Temperature uniformity(℃) |
±7.5 |
±7.5 |
±7.5 |
±7.5 |
±7.5 |
±10 |
|
Pressure rise rate(Pa/h) |
0.67 |
0.67 |
0.67 |
|||
