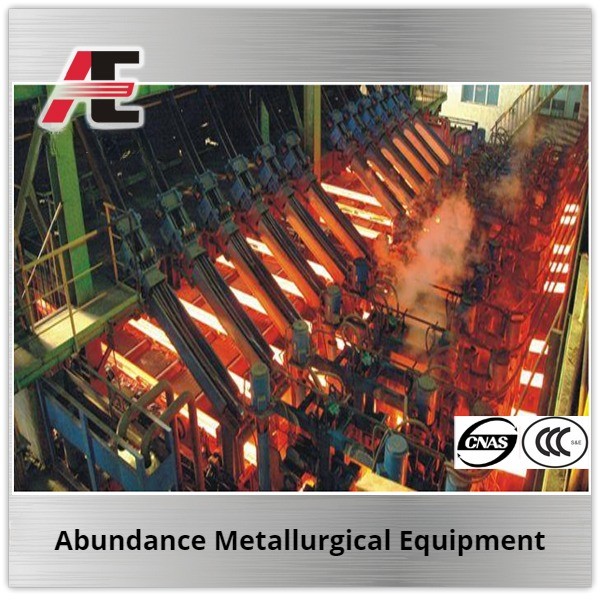

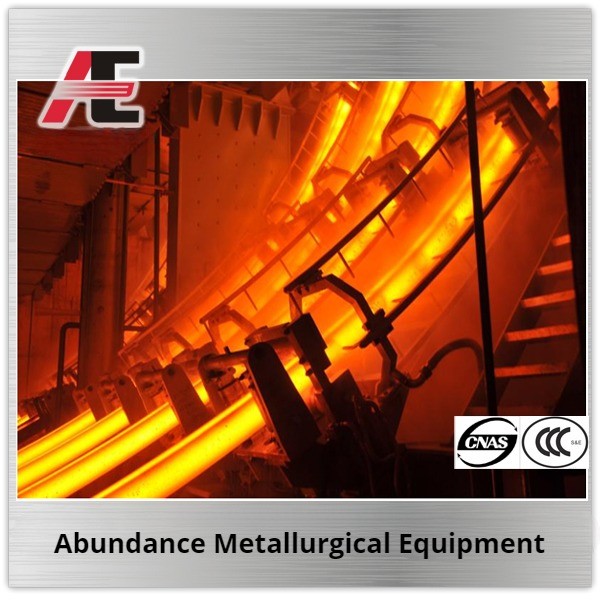

CCM Continuous Casting Machine For Steel Melting And Ladle Refining Furnace

                                              Continuous Casting Machine CCM

Continuous Casting Machine CCM Electric Arc Furnace EAF-LF-CCM Machining Parts Spare Parts Type for Steel Melting and Ladle Refining Furnace

Type of caster   Full arc type Continuous casting machine

Radius of the arc (m)     R4-8m

Distance between strands (mm)      1250

Number of strand   1-10Strands

Cross section of billet (mm)      80*80-200*200mm

Length of billet (m) 3-12m

Casting steel grade :   Normal carbon steel, low allow steel, bearing steel

Casting speed m/min    0-3.5

Dummy bar sending speed m/min  0.5 - 4

Dummy bar type     Rigid dummy bar

Casting way      Sliding nozzle - Immersion long nozzle - Protection slag

Billet cutting method     Flame cutting machine

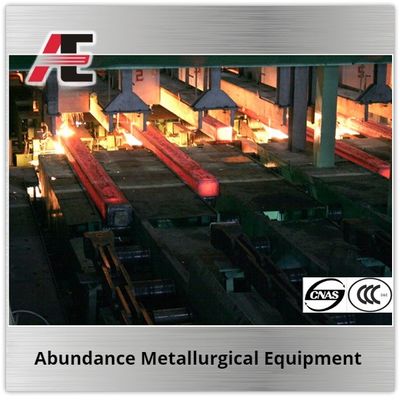

Billet out going mode    Terminal roller table - chain type removing machine -sliding rails cooling bed

total length of the caster (m)     about 40

Description:
Dummy bar is used in continuous casting machine. It is used to guide the billet.

Application:
The dummy bar is used to tract and lead the cooled and solidified strand and put it out by the withdrawal and straightening machine.

Features:
In order to avoid the deformation of dummy bar body due to heating, the dummy bar is  equipped with a cooling water pipe inside the bar body. It has the features of smaller deformation, long service life, simple structure and installation, easy operation and maintenance.

Specification:
1. CCM machine parts
2. Diversified arc radius
3. Diversified strands
4. More operations for CCM machine


Technical Parameter:
