Continuous Casting Machine CCM

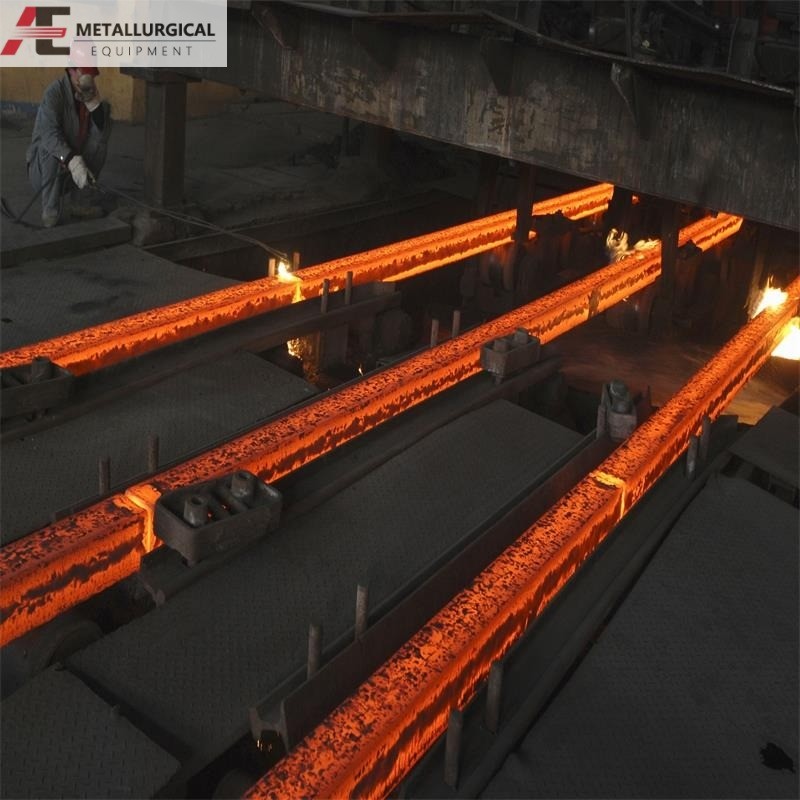

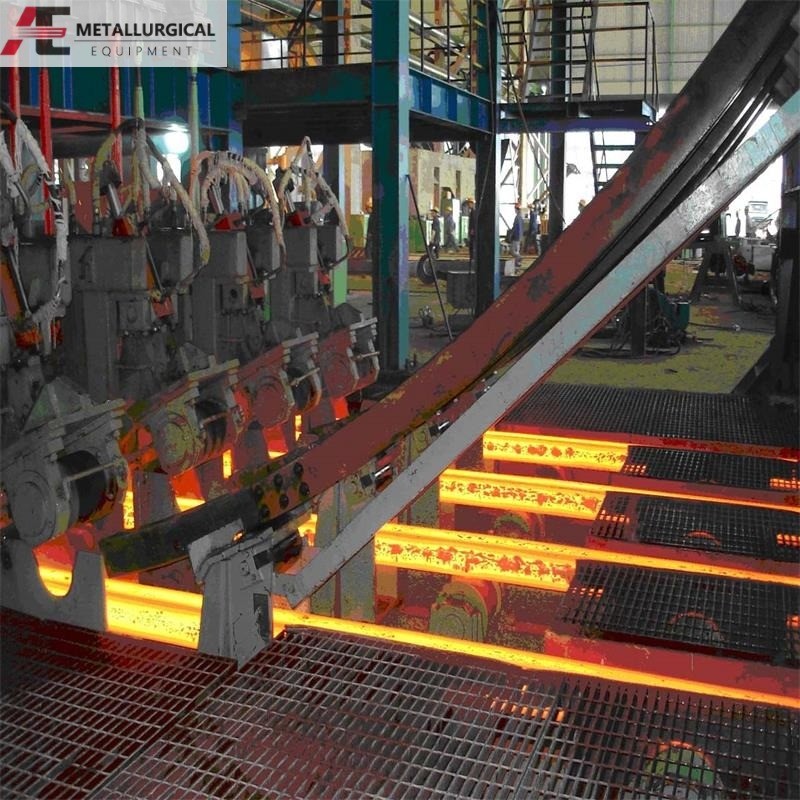

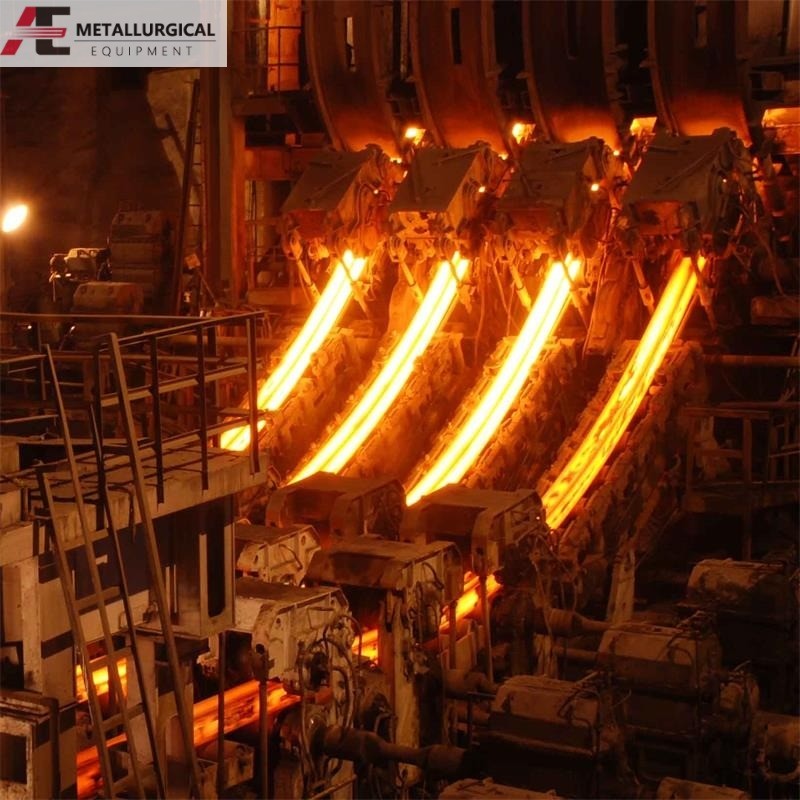

Continuous Casting Machine CCM 30000 KG Weight 4 Strands2 strands CCM for Steel Billet/Slab at Manufacturing Plant
Type of caster Full arc type Continuous casting machine
Radius of the arc (m) R4-8m
Distance between strands (mm) 1250
Number of strand 1-10Strands
Cross section of billet (mm) 80*80-200*200mm
Length of billet (m) 3-12m
Casting steel grade : Normal carbon steel, low allow steel, bearing steel
Casting speed m/min 0-3.5
Dummy bar sending speed m/min 0.5 - 4
Dummy bar type Rigid dummy bar
Casting way Sliding nozzle - Immersion long nozzle - Protection slag
Billet cutting method Flame cutting machine
Billet out going mode Terminal roller table - chain type removing machine -sliding rails cooling bed
total length of the caster (m) about 40
Description:
Dummy bar is used in continuous casting machine. It is used to guide the billet.
Application:
The dummy bar is used to tract and lead the cooled and solidified strand and put it out by the withdrawal and straightening machine.
Features:
In order to avoid the deformation of dummy bar body due to heating, the dummy bar is equipped with a cooling water pipe inside the bar body. It has the features of smaller deformation, long service life, simple structure and installation, easy operation and maintenance.
Specification:
1. CCM machine parts
2. Diversified arc radius
3. Diversified strands
4. More operations for CCM machine
Technical Parameter:
|
Outer bow radius of bar body |
R3000mm,R4000mm, R5250mm,R6000mm, R7000mm, R8000mm,R10000mm |
|
Section dimension of bar body |
80x80mm,100x100mm,120x120mm,150x150mm,160x160mm,180x180mm,200x200mm |
