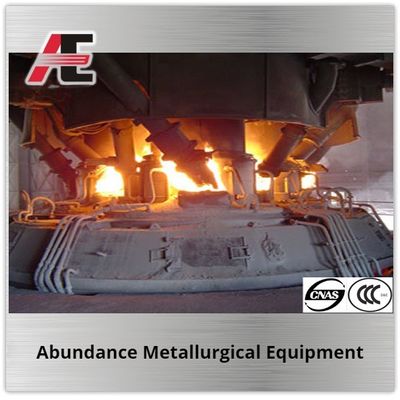

16500KVA 22500KVA 55000KVA Submerged Arc Furnace for Ferroalloy Smelting

Our industrial-grade submerged arc furnace is designed for efficient smelting of various ferroalloys including ferrosilicon, silicomanganese, ferrochromium, ferromanganese, ferronickel, and silicon metal.

This power-intensive industrial furnace system consists of multiple integrated components:

• Furnace shell with lining and fume hoods
• Short net electrical system
• Comprehensive cooling and exhaust systems
• Electrode management system (shell, holder, lifting mechanism)
• Loading/unloading systems
• Hydraulic systems
• Specialized submerged arc furnace transformer

• Furnace body (support structure, shell, lining)
• Tapping system with ladle and transport car
• Arc burner system

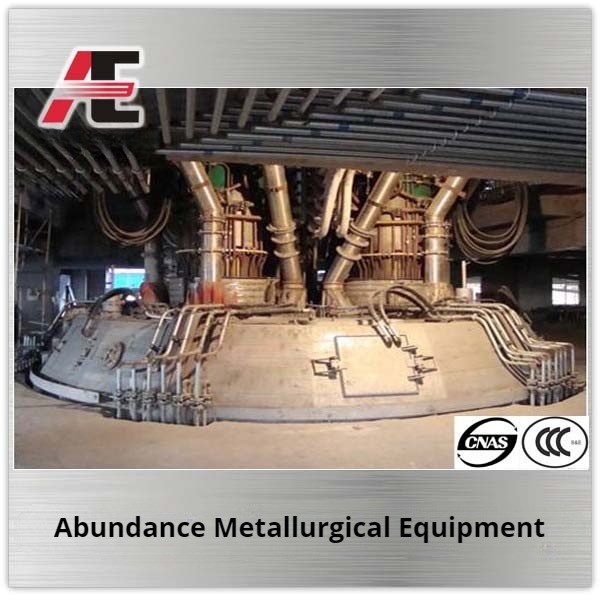

• Fume hood: Closed/semi-closed environmental design for gas collection and heat retention
• Electrode holder: Three-phase power configuration with self-roasting electrodes
• Short net electrical distribution
• Copper tile components
• Electrode shell structure
• Material unloading system
• Stoking machine
• Exhaust and water-cooling systems
• Furnace transformer and operating controls

• Hydraulic power system
• Electrode press/release mechanism
• Electrode lifting system

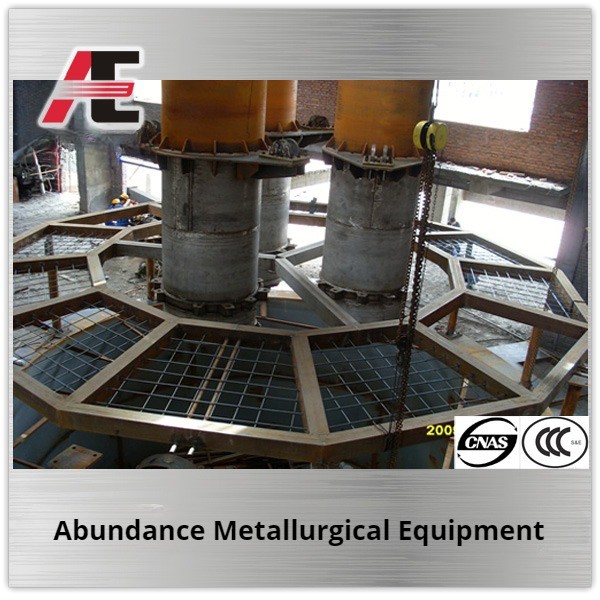

• Steel platform structure
• Material distribution systems (hopper, cycle car)

• Skew bridge feeding mechanism
• Electronic batching control system

With experience from over 200 global installations, we provide complete engineering solutions for ferroalloy production:

• Available furnace capacities: 6300KVA to 68000KVA
• Full-process support from raw material preparation to finished product
• Comprehensive services including engineering design, equipment supply, installation, and operational training
