PLC Control Industrial Vacuum Melting Furnace 100kg-500kg 380V Voltage

1
MOQ
Negotiation
Price
PLC Control Industrial Vacuum Melting Furnace 100kg-500kg 380V Voltage
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vacuum Induction Melting Furnace
Use: Melting Furnace
Warranty Of Core Components: 1 Year
Core Components: PLC
Highlight:

Vacuum Melting Furnace 100kg

,

500kg Industrial Melting Furnace

,

380V Vacuum Melting Furnace

Basic Infomation
Place of Origin: Shaanxi, China
Brand Name: AE
Certification: CE;ISO9001;ISO14001;OHSAS 18001
Payment & Shipping Terms
Delivery Time: 30-60 work days
Product Description

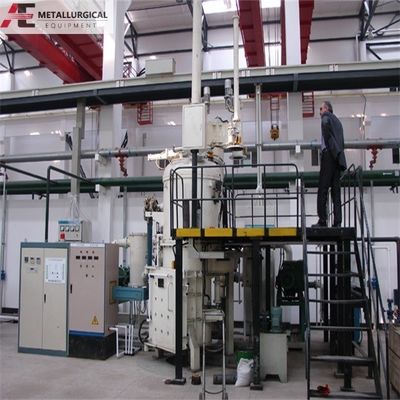

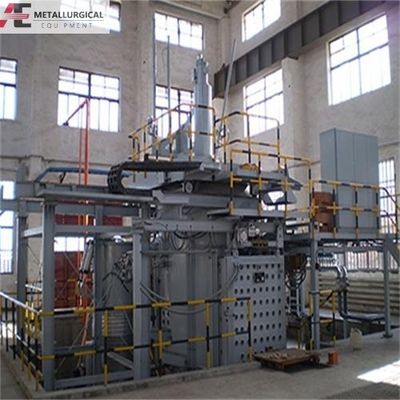

                                      Vacuum induction melting furnace

Vacuum melting furnace 100-500kg Vacuum Induction Melting Furnace for Industrial 380V Voltage and Free Repair Service Included

1,Description and main technical indicators of vacuum induction melting furnace

  AE-ZK-1.0L periodic vacuum induction melting furnace is mainly used for medium-frequency induction heating of various high-temperature alloys, iron-based, nickel-based alloys, cobalt-based alloys and certain non-ferrous metals and their alloys under vacuum or inert gas protection. Melting, smelting, casting and molding are carried out according to the principle.

 ,The furnace has a vertical structure. The smelting chamber and the ingot mold chamber are in the same room. Before smelting, the ingot mold is placed in the furnace chamber. After the smelting is completed, the smelted molten steel is poured into the mold through the observation window. After cooling, , break the vacuum, open the side furnace door and take out the cast ingot mold. Start the next batch of work to achieve cycle production

 2. Main Specifications:

 Smelting furnace technical parameters:

 Rated capacity of electric furnace: 1000kg

 Smelting environment: vacuum or inert atmosphere state.

 Melting working temperature: 1600-1700

 High temperature: 1750-2000 depending on crucible material

 Ultimate vacuum pressure6.67X10-2Pa

 Working vacuum degree 6.67X10-1Pa

 Air leakage rate 50Pa/S

 Empty time 50 minutes

 Maximum loadable power: 600KW

 Melting frequency: 1000Hz

 Average melting speed (power delivery from full material to complete melting): 1000Kg/1-1.5h

 Temperature measurement range: 1000-1800
