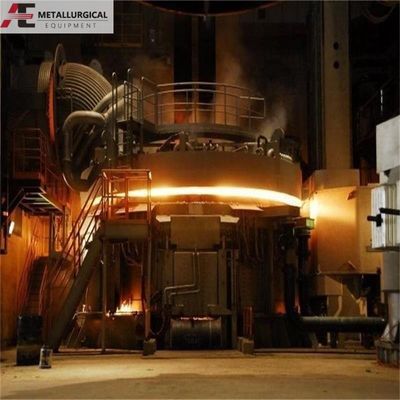

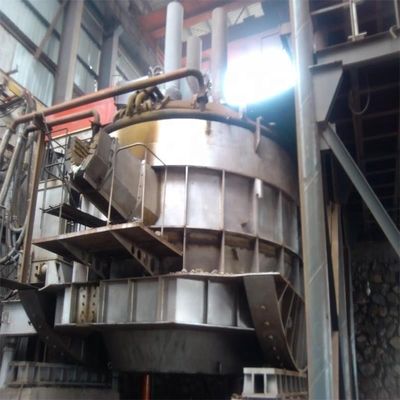

Electric Arc Furnace 5T-150T with New Technology and Flexible Smelting Temperature for High Efficiency Steel Production

The electric arc furnace uses electricity as a fuel source, utilizing the high-temperature arc produced between electrodes and furnace charge to heat and melt materials. It is widely used in production of normal steel, high-quality carbon steel, various alloy steels, stainless steel, and various ferroalloys. This equipment serves as a key component in steel making factories, foundry facilities, and ferrous alloy production plants.

• Flexible smelting temperature control to meet different steel grade production requirements
• High heat efficiency with controllable furnace atmosphere
• Effective removal of phosphorus, sulfur, oxygen and other impurities to improve steel quality
• Precise control of steel chemical composition with stable and high alloy recovery rates
• Simple equipment design with shorter technological processes

• Optimized design for enhanced performance
• Tubular water-cooled furnace wall and lid
• Eccentric bottom tapping (EBT) system
• Copper-steel combined electrode arm
• Cluster-type large sectional area water-cooled cables
• Optimized large current system structure (energy-saving type)
• Proportional valves hydraulic system
• Basic level (PLC) + procedure level (Industrial control computer) Control system
• Frequency control technique
• Network integration technology

• Furnace body
• Tilting mechanism
• Furnace cover
• Furnace bracket
• Furnace cover lifting and rotating mechanism
• Electrode lifting mechanism
• Short Net System
• Cooling system
• Air compression system
• Upright bracket
• Maintenance platform
• Working platform
• Electrode extension device
• Hydraulic system
• Transformer
• Furnace door oxygen lance device
• Furnace cluster oxygen lance
• High voltage cabinet
• Low voltage power supply system
• Computer and PLC control system
