Electric Arc Furnace EAF with Smelting Temperature Control High Heat Efficiency and Impurity Removal for Steel Production

1
MOQ
Negotiation
Price
Electric Arc Furnace EAF with Smelting Temperature Control High Heat Efficiency and Impurity Removal for Steel Production
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Arc Furnace
Warranty Of Core Components: 1 Year
Core Components: PLC
Key Selling Points: Competitive Price
Condition: New
Highlight:

Steel Electric Arc Furnace

,

Scrap Iron Electric Arc Furnace

,

100 Tons Electric Arc Furnace
Basic Infomation
Place of Origin: Shaanxi, China
Brand Name: AE
Certification: CE;ISO9001;ISO14001;OHSAS 18001
Payment & Shipping Terms
Delivery Time: 30-90work days
Product Description

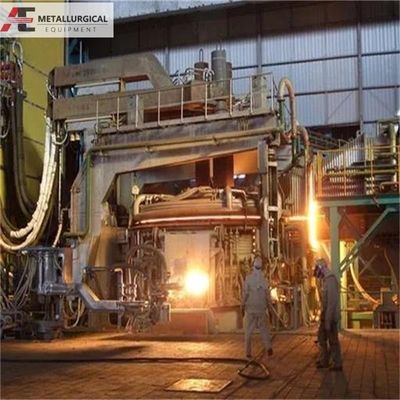

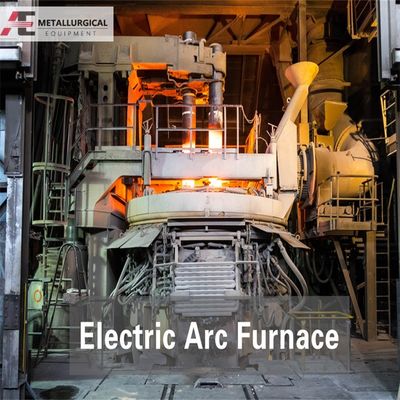

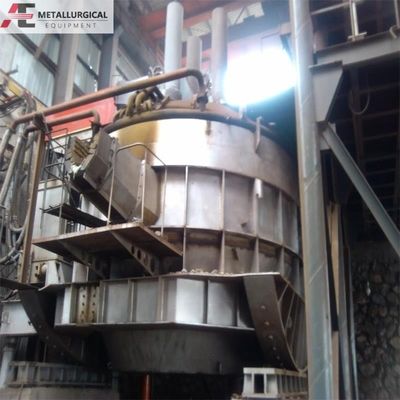

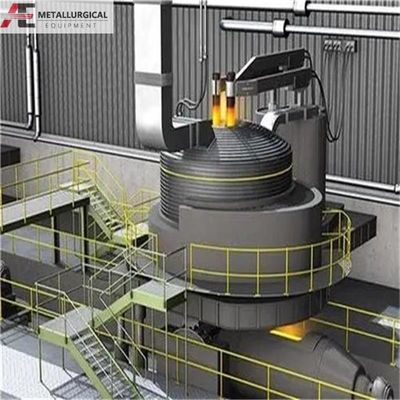

Electric Arc Furnace for Melting Scrap Iron/Steel (1.5-100 Tons)
The electric arc furnace uses electricity as its fuel source, utilizing the high-temperature arc produced between electrodes and furnace charge to heat and melt materials. This industrial-grade equipment is essential for producing normal steel, high-quality carbon steel, various alloy steels, stainless steel, and ferroalloys.
Key Features:
  • Flexible smelting temperature control for diverse steel grade production
  • High heat efficiency with controllable furnace atmosphere
  • Effective removal of phosphorus, sulfur, oxygen and other impurities
  • Precise chemical composition control with stable alloy recovery rates
  • Simplified equipment design with shorter processing workflow
Advanced Technologies:
  • Optimized structural design
  • Tubular water-cooled furnace wall and lid
  • Eccentric bottom tapping (EBT) system
  • Copper-steel combined electrode arm
  • Cluster-type large sectional area water-cooled cables
  • Energy-saving large current system structure
  • Proportional valves hydraulic system
  • PLC + Industrial control computer control system
  • Frequency control and network technology integration
Complete System Components:
Furnace body, tilting mechanism, furnace cover, furnace bracket, cover lifting/rotating mechanism, electrode lifting mechanism, short net system, cooling system, air compression system, upright bracket, maintenance platform, electrode extension device, hydraulic system, transformer, furnace door oxygen lance device, furnace cluster oxygen lance, high voltage cabinet, low voltage power supply system, and computer/PLC control system.
Technical Specifications:
Type Rated Capacity (T) Max Capacity (T) Furnace Shell Inner Diameter (MM) Electrode Diameter (MM) Transformer Capacity (KVA)
EAF-5T 5 10 3200 300 2500-4300
EAF-10T 10 18 3600 350 5500-8000
EAF-15T 15 24 3800 350 8000-12500
EAF-20T 20 30 4000 400 9000-12500
EAF-25T 25 35 4200 400 12500
EAF-30T 30 45 4400 400 12500-25000
EAF-40T 40 55 4600 450 16000-30000
EAF-45T 45 65 4800 450 16000-40000
EAF-60T 60 85 5400 500 25000-60000
EAF-80T 80 100 6100 500 30000-80000
EAF-100 100 120 6400 550 40000-80000
