High Heat Efficiency Electric Arc Furnace with Flexible Smelting Temperature and Competitive Price for Steel Melting

1
MOQ
Negotiation
Price
High Heat Efficiency Electric Arc Furnace with Flexible Smelting Temperature and Competitive Price for Steel Melting
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Arc Furnace
Warranty Of Core Components: 1 Year
Core Components: PLC
Key Selling Points: Competitive Price
Showroom Location: None
Highlight:

Steel Melting Process Electric Arc Furnace

,

Steel Melting Furnace High Capacity

,

Electric Arc Furnace 1.5 Ton
Basic Infomation
Place of Origin: Shaanxi, China
Brand Name: AE
Certification: CE;ISO9001;ISO14001;OHSAS 18001
Payment & Shipping Terms
Delivery Time: 30-90work days
Product Description

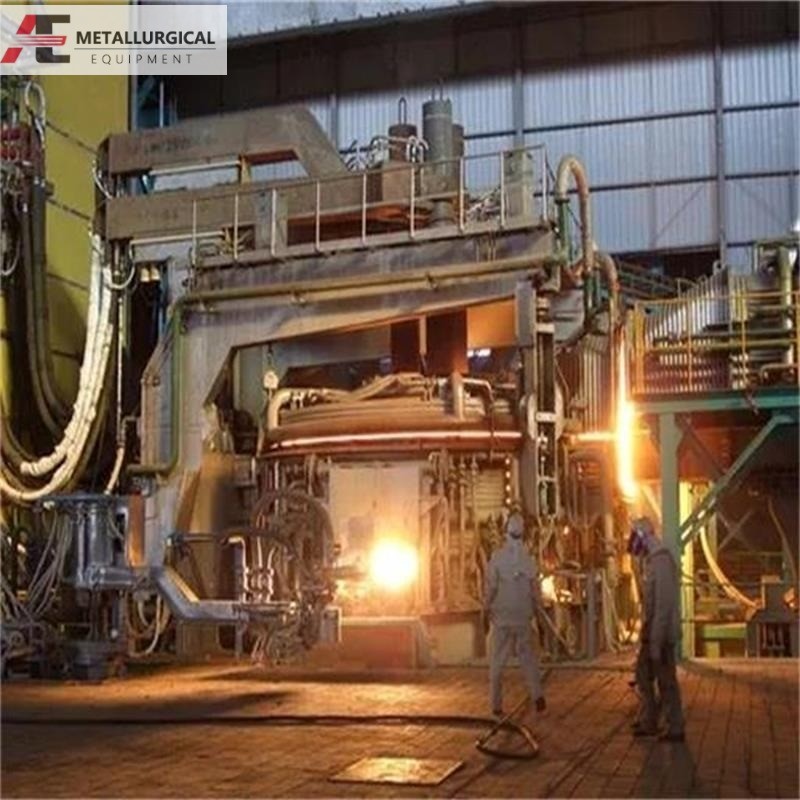

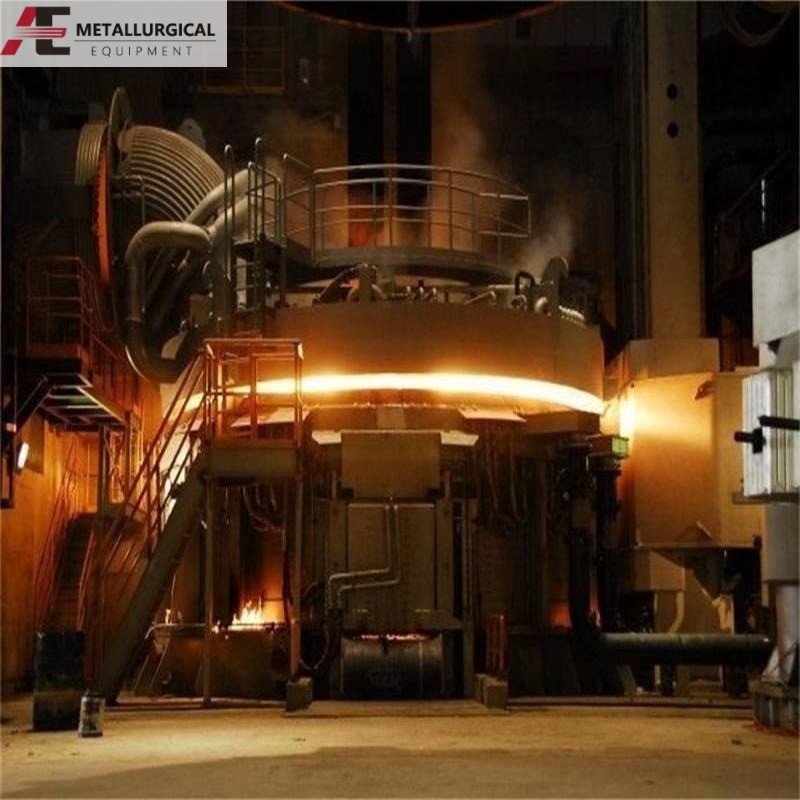

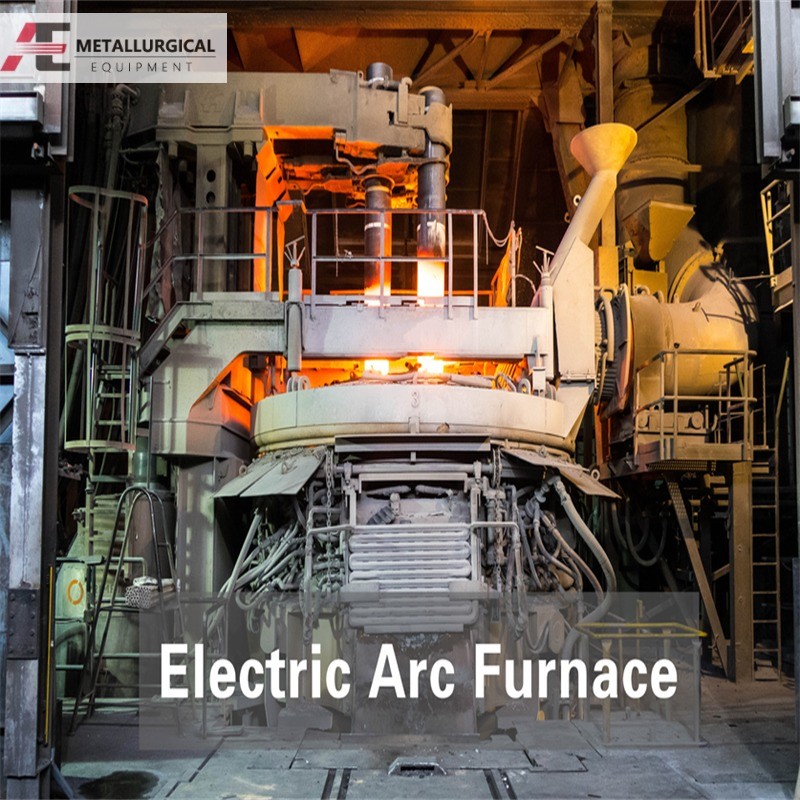

Steel Melting Process Electric Arc Furnace 1.5 Ton -100 Ton High Capacity
Product Overview
The Electric Arc Furnace uses electricity as a fuel source, utilizing the high-temperature arc produced between electrodes and furnace charge to heat and melt materials. This equipment is essential for producing normal steel, high-quality carbon steel, various alloy steels, stainless steel, and ferroalloys. It serves as key equipment in steel mills, foundries, and ferrous alloy production facilities.
Key Characteristics
  • Flexible smelting temperature control for diverse steel grade production
  • High heat efficiency with controllable furnace atmosphere
  • Effective removal of phosphorus, sulfur, oxygen and other impurities to enhance steel quality
  • Precise chemical composition control with stable alloy recovery rates
  • Simple equipment design with streamlined production process
Advanced Technology Features
  • Optimized design for maximum efficiency
  • Tubular water-cooled furnace wall and lid
  • Eccentric bottom tapping (EBT) system
  • Copper-steel combined electrode arm
  • Cluster-type large sectional area water-cooled cables
  • Energy-saving large current system structure
  • Proportional valves hydraulic system
  • Basic level (PLC) + procedure level (Industrial control computer) Control system
  • Frequency control technique
  • Network integration capability
Complete System Components
The furnace system includes: furnace body, tilting mechanism, furnace cover, furnace bracket, cover lifting/rotating mechanism, electrode lifting mechanism, short net system, cooling system, air compression system, upright bracket, maintenance platform, electrode extension device, hydraulic system, transformer, furnace door oxygen lance device, furnace cluster oxygen lance, high voltage cabinet, low voltage power supply system, and computer/PLC control system.
Main Technical Specifications
Type Rated Capacity (T) Max Capacity (T) Furnace Shell Inner Diameter (MM) Electrode Diameter (MM) Transformer Capacity (KVA)
EAF-5T 5 10 3200 300 2500-4300
EAF-10T 10 18 3600 350 5500-8000
EAF-15T 15 24 3800 350 8000-12500
EAF-20T 20 30 4000 400 9000-12500
EAF-25T 25 35 4200 400 12500
EAF-30T 30 45 4400 400 12500-25000
EAF-40T 40 55 4600 450 16000-30000
EAF-45T 45 65 4800 450 16000-40000
EAF-60T 60 85 5400 500 25000-60000
EAF-80T 80 100 6100 500 30000-80000
EAF-100 100 120 6400 550 40000-80000
Tag:

Steel Electric Arc Furnace

Scrap Iron Electric Arc Furnace

100 Tons Electric Arc Furnace
